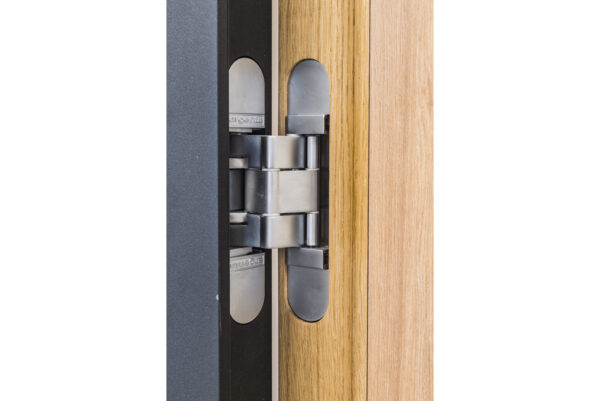

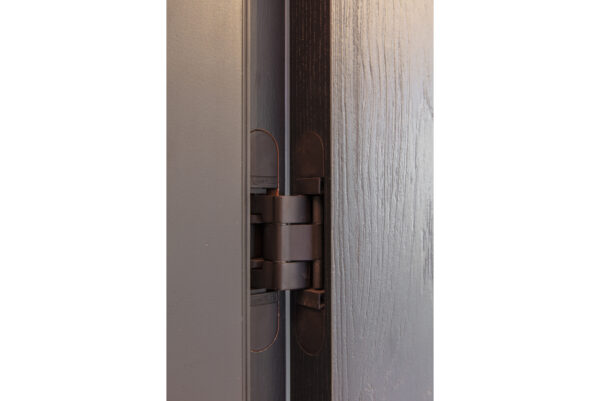

ARLU Neo L7 Invisible/Concealed Hinge up to 220lbs

The Argenta Invisible neo is a 3D-adjustable concealed hinge with concealed screws and a high-quality look and feel. In addition, these hinges come with our Easy-Hook system, meaning doors can be placed by just one person working alone. Invisible neo is reversible and can be used for both left and right-hand doors. What makes invisible neo so unique? Ease of use Easy-Hook: installation and 3D adjustment can be performed by just one person working alone Universal: invisible neo is suitable for both left and right-hand doors 3D-adjustable: these invisible hinges can be set in height, width and depth Opening angle: these invisible hinges have an opening angle of 180°   Durability and Safety Fire-resistant: When combined with an intumescent kit, invisible neo M6 and L7 are fire-resistant for 60 minutes   Aesthetics Available colors: Invisible Neo L7 is available in 4 colors Detail: no visible adjustment and fastening screws due to cover plates Sizes: invisible neo is available in three sizes with different load-bearing capacities: S5, M6 and L7   Weight Table Number of Hinges 2 Hinges 3 Hinges Max door weight according to door width 28.74 inches 242lbs 352lbs 32.68 inches 231lbs 341lbs 36.61 inches 220lbs 330lbs 40.55 inches 209lbs 319lbs For easier installation, please see our ARLU Invisible Hinge Milling Template
