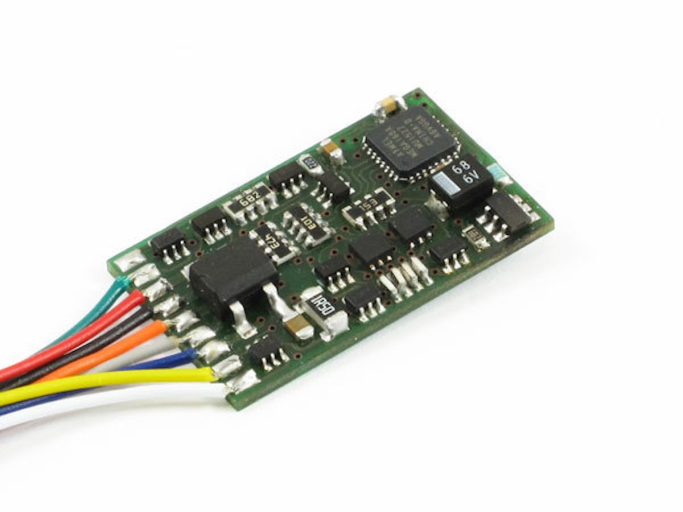

LENTE 10231-02 DIGITAL PLUS LOKEDECODER ESTÁNDAR V2

TRIX 66839 Decoder 1600 mA for 21-pin interface. Receiver for all Trix H0 DC locomotives with a 21-pin interface and a current consumption of up to 1600 mA (motor 1100 mA, functions 150 mA each). The electronics have a total of 4 switchable functions. The “function” output is intended for lighting. Additional functions can be switched via a mobile station or a DCC control center. • Universally usable in Setrix and DCC formats. • Automatic system and analog recognition. • Same locomotive address in Setrix and DCC operation. • 7 adjustable maximum speeds. • 4 adjustable motor pulse variants. • Automatic load balancing. • Connection for the light function. • Connection for additional functions. • Short-circuit protection of the motor output. • Overload protection of the light output. • Overload protection of the additional function. • Programming of additional settings by selecting the address “00”, e.g. fine gradation of the pulse widths (control variant), polarity reversal in Selectrix operation: • 31 speed levels. • 111 addresses. • Block path operation with simple diodes (1 or 2 holding sections). • Braking operation with braking diode. in DCC operation: • manual speed level selection 14 / 28 levels. • automatic switching to 128 speed levels. • Selectable 7 or 14-bit addresses. • Braking operation with braking generators in DC and broadcast mode
